Whynter ARC-1050XPH 10,000-BTU SACC portable AC and heat pump review

The suffix adds a heat pump, not more cooling capacity

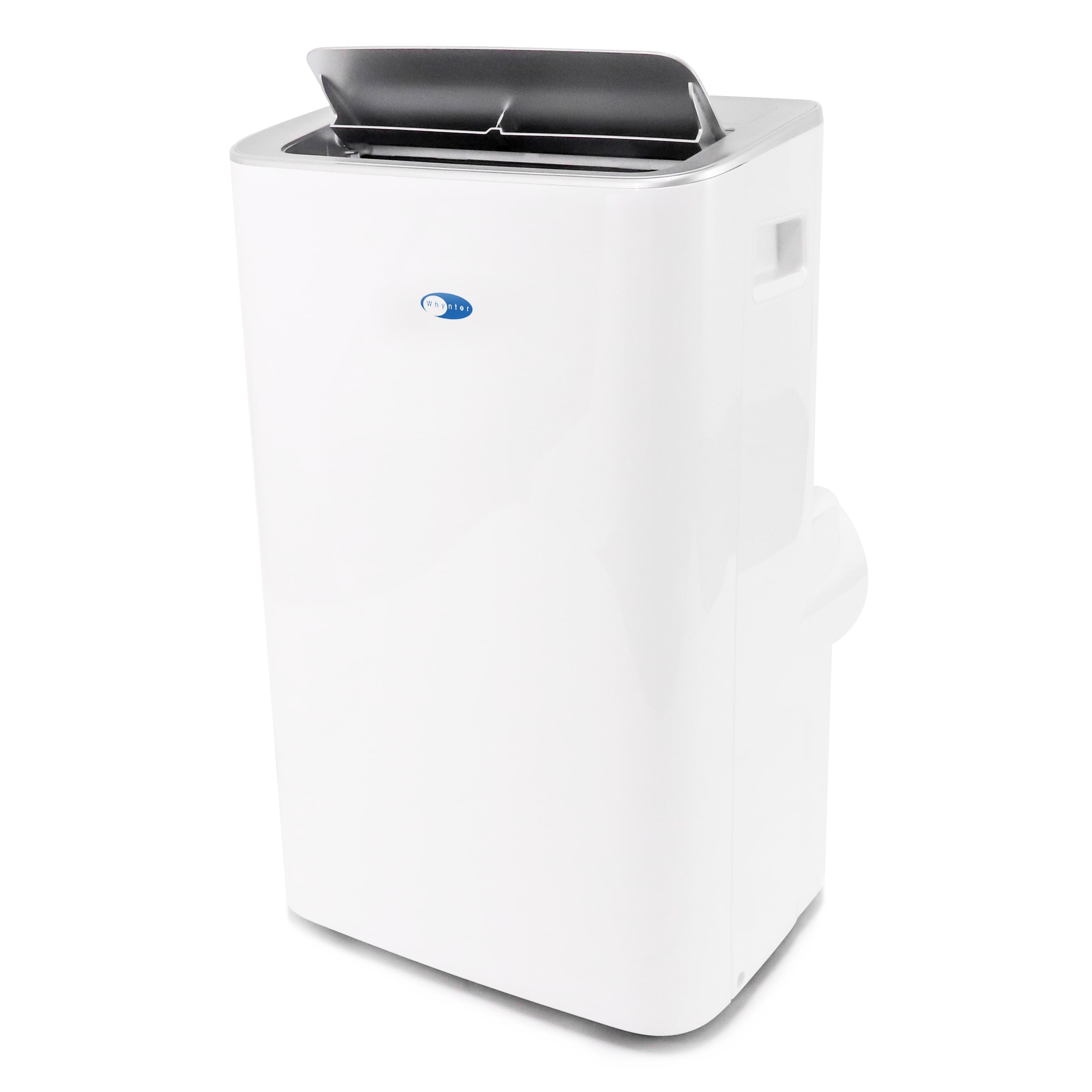

The Whynter ARC-1050XPH is the heating version of the ARC-1050XP. Both are listed at 13,500 BTU/h ASHRAE and 10,000 BTU/h SACC for cooling, with a 500-square-foot manufacturer estimate. The XPH adds a 10,500-BTU/h heat-pump rating and a Heat mode; it does not raise the cooling SACC. If you will only cool, the cooling-only XP has the same listed SACC and avoids equipment you may never use. If heat is essential, the XPH needs a separate look because both the outdoor temperature and water route matter.

Heating has an ambient floor and a required hose

The shared 2026 manual lists Heat operation from 41°F to 86°F ambient. That is an operating boundary, not a guarantee of comfortable room temperature or a whole-house heating substitute. When outdoor temperatures are below the documented floor, the manual does not support using this portable unit as the needed heat source. Whynter's product page lists the XPH as a single-hose design; the exhaust route still matters for cooling, and the heating layout needs to follow the exact seasonal instructions.

Most importantly, the heat pump has its own drain requirement. The parts list names a special heat-pump adapter for ARC-1050XPH; one drainage heading shortens the model to “ARC-1050WNH,” but the manual cover, technical table, parts list and exact product page identify the XPH suffix. The drain instructions say the pump operates in Heat mode only. Its hose must be installed whenever this model is heating and routed to a suitable drain. This is distinct from the upper gravity drain the manual describes for Dry mode: the gravity hose needs a downward path, while the heat-mode pump can move water through its own hose. There is no documented “heat without any drain line” setup. If a floor drain or other safe receiving point is unavailable, do not choose the heat function as an essential capability.

One exhaust hose, plus smart controls

For cooling, dehumidifying and fan use, the product page specifies a single exhaust hose and a three-piece window panel. The current published window span is 28 to 82 inches; its older exact-model listing gives a 28.3-inch minimum. The manual illustrates how the panels are joined, shortened and sealed into either a hung or sliding window. Measure the opening rather than treating the quoted maximum as permission to leave gaps. The manual cautions against overextending or bending the duct and calls for unobstructed discharge clearance.

Whynter lists NetHome Plus app control, Alexa and Google Home compatibility, a remote, timer, sleep mode and automatic swing louvers. These can be helpful if schedules or remote changes matter, but the core cooling controls remain on the unit and remote. The manual says a washable filter needs cleaning about every two weeks; it also describes manual drainage and high-humidity P1 interruptions. Its carbon-filter replacement passages conflict on timing, so verify the accessory instructions. The self-evaporating claim is qualified as “most environments,” not a no-maintenance guarantee.

Do not treat the page's physical figures as a precise fit certificate

Whynter's current product page lists 17.7 × 14.17 × 29 inches and 72 pounds. The shared manual table lists 17.5 × 14 × 29 inches and 70.5 pounds. The page and manual agree on cooling SACC, heating capacity, voltage and the 41–86°F Heat ambient range, but disagree on net weight and cabinet width/depth. Sound specifications differ too. Those conflicts mean a narrow alcove, hard lift limit or noise ceiling should be checked against the actual model and carton rather than inferred from a single webpage. Page and manual both state CEER 7.9, but the XPH-specific EnergyGuide link in Whynter's legacy product page returned 404 in this check. So the exact-label CEER and annual energy-use figure remain unverified for the label-based matcher.

Whynter describes a one-year unit warranty and three years on the compressor; the manual says the compressor warranty adds two years after the first year. Treat that as three years total from purchase, subject to the actual terms and proof of authorized purchase. Manufacturer noise and capacity numbers are specifications, not our measurements.

Who should compare the XPH?

It is worth considering when one portable appliance must both cool and heat, the 10,000-BTU/h SACC cooling tier is adequate, outdoor Heat-mode conditions stay within the manual's 41–86°F range, and a drain hose can be routed in heat mode. The ARC-1050XP is the simpler choice when heating is not required; it has the same listed cooling SACC without the heater. The ARC-0850XP is a lower 8,000-SACC cooling tier without heat. For a two-hose setup, compare the separate ARC-1030WN; it is a dual-hose inverter model but has no heater. These are not interchangeable units, even when their white cabinets look alike.

Sources inspected: Whynter's current ARC-1050XPH page, its shared 2026 manual and its older exact-model page. This is a source-based assessment, not a hands-on cooling, heating, energy, noise or durability test.
