Whynter ARC-14SH 9,200-BTU SACC dual-hose heat-pump air conditioner review

Heat is the suffix-specific reason to consider this model

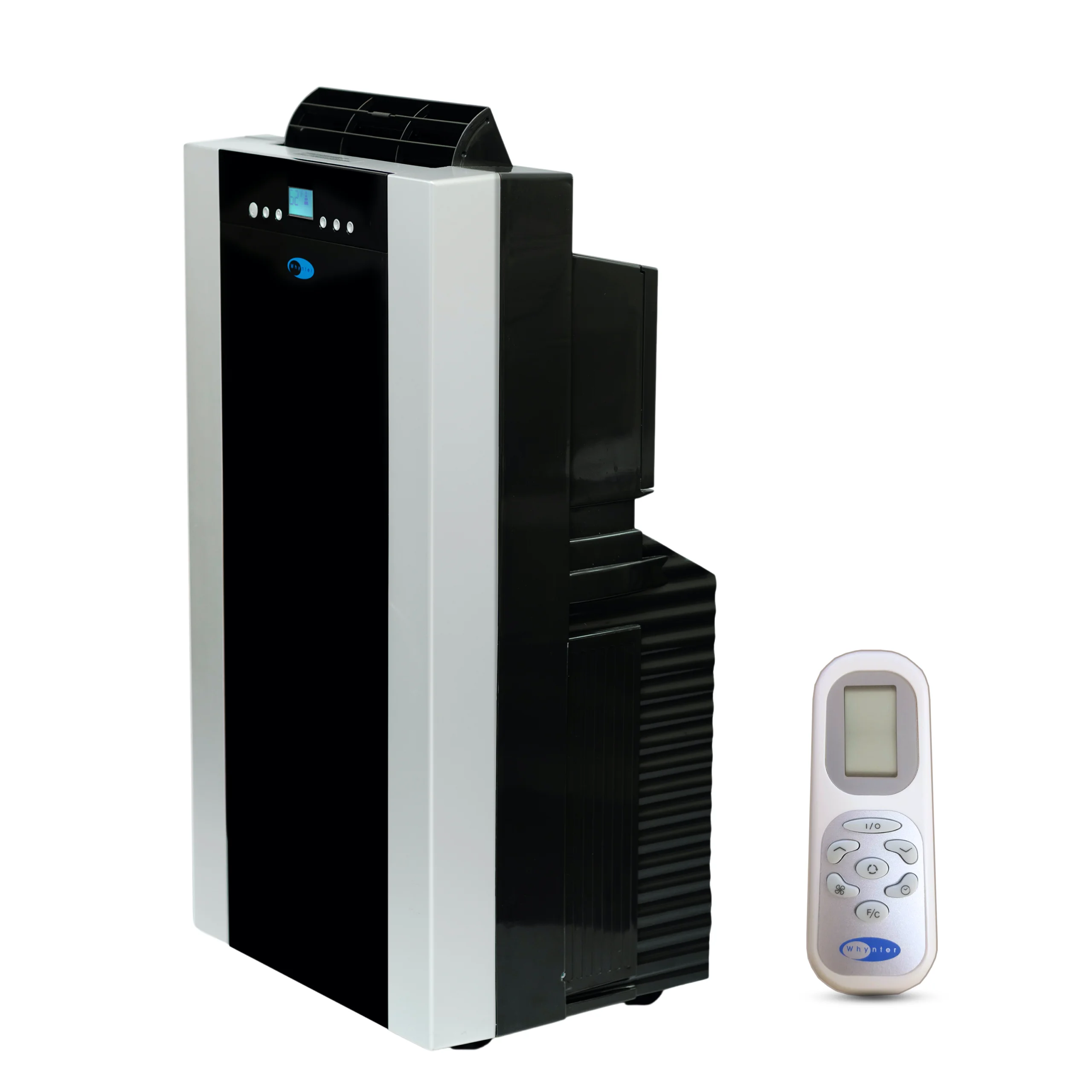

The Whynter ARC-14SH combines cooling, dehumidify, fan and heat-pump modes in a dual-hose portable cabinet. Whynter lists 14,000 BTU/h ASHRAE cooling, 9,200 BTU/h SACC cooling and 13,000 BTU/h ASHRAE heating. For cooling comparisons, the 9,200 SACC figure is the relevant DOE-style capacity; this model clears an 8,000-BTU/h minimum but not 10,000. Its broad 500-square-foot estimate is only a starting point. Direct sun, poor insulation, high ceilings and open doorways can change a room’s load considerably.

Heat-pump operation has a real outdoor-temperature boundary

The manual says heat-pump operation will not work below 45°F ambient and gives a separate 61–77°F thermostat setting range for heat. The product page also describes heating in ambient conditions above 45°F. Those are not the same number: the ambient limit is the outdoor condition, while 61–77°F is the set temperature you choose indoors. Treat this as a limited-temperature supplemental option, not as proof that the unit can heat in colder weather. During heating, the cold side still needs an exhaust path; the manual says that when outdoor air is cooler than the room, remove the intake hose and cover the window’s intake fixture. That seasonal adjustment is easy to overlook if the hoses have been left installed for summer cooling.

Cooling installation is dual-hose, not hose-free

For cooling, the ARC-14SH uses separate intake and exhaust hoses. Whynter lists the hoses as 5.9 inches in diameter and up to 60 inches long, and the page says not to extend them past nine feet. The manual calls for a short, straight path and at least 20 inches of clearance around the air inlet and outlet. The cabinet measures 16 inches wide, 19 deep and 35.5 high; the page and current manual both list an 85-pound net weight. Casters help reposition it on a smooth, flat floor, but this is not a light stair carry.

Its adjustable window slider is described as 20–56 inches in the specification and current manual. The accessories section of the product page, however, lists a replacement window kit with a 46-inch maximum. Because the supplied panel and replacement part are not clearly distinguished across every version, measure the opening and verify the kit in the exact carton before relying on a 56-inch reach. The manual says a shorter opening can be handled by trimming the slider, but a wider opening needs additional material or another panel.

Heating changes the water routine

Whynter says condensate normally evaporates and leaves through the exhaust in most cooling and dehumidifying conditions. The page lists 71 pints per day of dehumidification, and the manual warns that high humidity can still leave residual water in the tank. Heating is different: the manual says the self-evaporating function does not apply in that mode, so the unit may need to be drained more often. It does not establish a required continuous drain hose for heat, and the page says there is no pump or upper gravity-drain port. Plan to monitor the unit and keep the manual-drain access reachable; do not assume that heat mode will run without water attention.

The control panel and remote support four modes, three fan speeds, a 24-hour timer and automatic restart. Whynter quotes sound below 51 dBA on low and below 56 dBA on high. These are manufacturer figures rather than independent measurements, and the compressor remains in the room. If low noise is a strict nighttime need, do not treat the published number as a guarantee of a quiet bedroom.

Filters, electricity and labels

The manual describes a washable pre-filter and a separate activated-carbon filter. It recommends washing the pre-filter at least every two weeks depending on use, and replacing the carbon layer every two or three months or as needed. A separately sold 3M filter is not washable. The unit is listed at 115 volts, 11.6 amps and up to 1,300 watts in cooling; the page lists 1,000 watts in heating. The manual warns against an extension cord and calls for a properly grounded outlet. Check the outlet and planned circuit before moving in an 85-pound machine.

Whynter’s page links an EnergyGuide that does name ARC-14SH and shows 3,351 kWh and $402 estimated annual cost using the label’s 12-cent-per-kWh assumption. That label is not a household bill, and its older document date matters because the current page and manual specify R-32 refrigerant. It does not display a CEER value here, so there is no label CEER to use for a strict efficiency comparison.

Choose it for heat, not a larger cooling rating

The ARC-14SH is worth comparing when you specifically need a portable heat-pump mode and can accept the documented above-45°F ambient floor, the seasonal intake-hose adjustment and more frequent manual draining in heat. If cooling capacity is the priority and heat is not, the ARC-14S lists a slightly higher 9,500-BTU/h SACC rating and has no heating mode. The ARC-14SH’s page and manual support 9,200 SACC, not the 14,000-BTU ASHRAE headline. If you need a known heat-mode drain-hose provision or a verified window-kit maximum, those exact conditions are not established for this configuration.

This review is based on the manufacturer’s product page, current manual and page-linked label, not a hands-on cooling, heating, noise or durability test. The manual cover also names ARC-14SH2, but its technical table identifies ARC-14SH; no separate SH2 facts are inferred. See Whynter’s ARC-14SH page, manual and page-linked EnergyGuide before choosing a setup.
