Whynter ARC-12S 5,000-BTU SACC Single-Hose AC review

A modest DOE rating hidden behind a larger ASHRAE headline

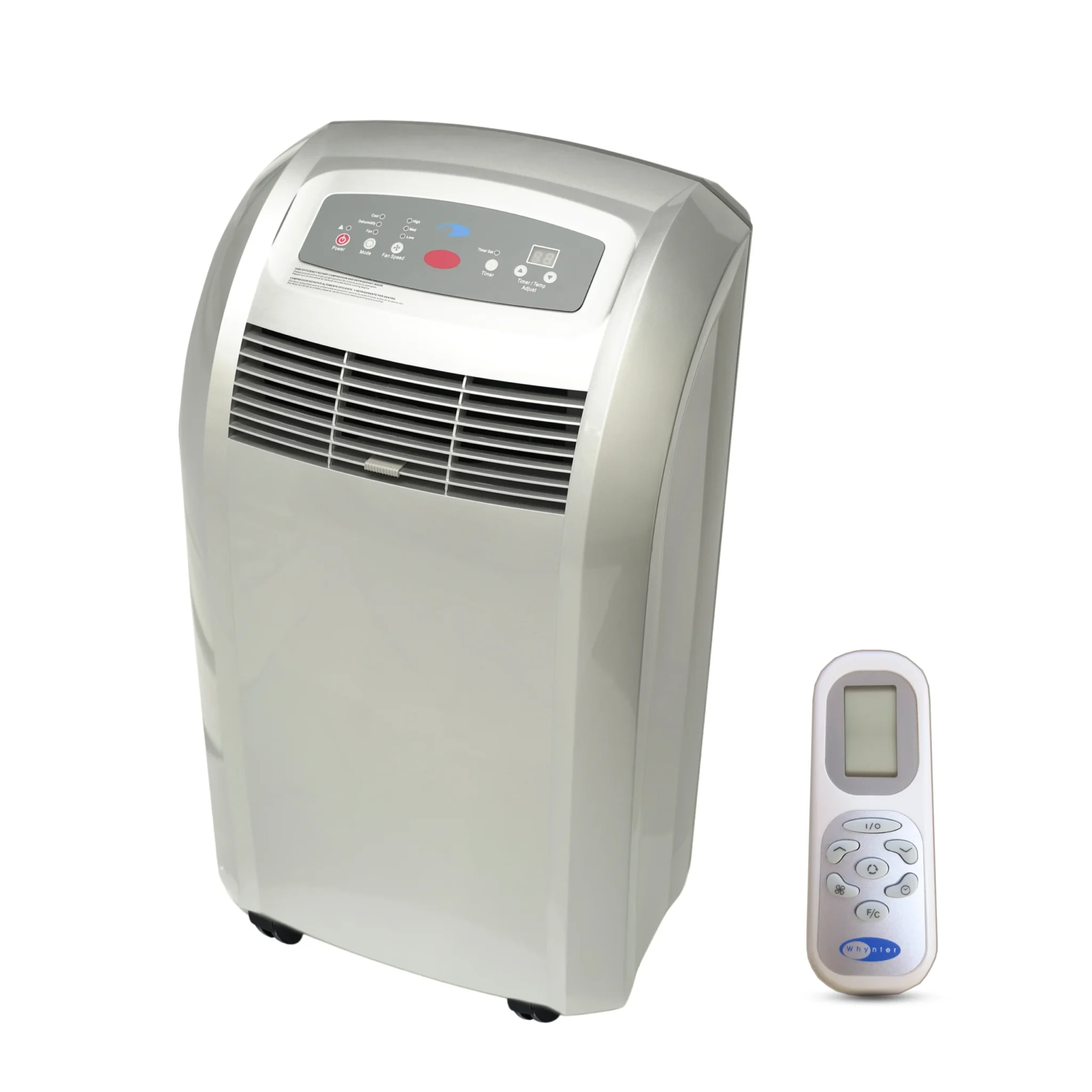

The Whynter ARC-12S is a platinum-finish, cooling-only portable AC. Its page advertises 12,000 BTU/h ASHRAE cooling, but the exact page and its EnergyGuide identify 5,000 BTU/h SACC. For choosing a portable unit, compare that DOE seasonal-adjusted number with other portable models rather than treating 12,000 as the capacity it delivers under the DOE test. Whynter suggests up to 400 square feet; that is a broad manufacturer estimate, not a promise for a sunny, tall, open-plan or high-heat room.

The low SACC is the main reason to be cautious about this name. It sounds like a 12,000-BTU machine, yet its DOE rating is closer to the lower end of this reviewed group. If an essential need is 6,000 BTU/h SACC or more, it does not meet it. The ARC-12SD is a materially different dual-hose model rated at 6,936 BTU/h SACC, while this ARC-12S is single-hose and has no heating mode.

Single exhaust hose and a relatively compact cabinet

The ARC-12S uses one exhaust hose. Its manual shows the hot-air hose leaving the cabinet and passing through the included window slider; it does not describe a second condenser intake hose. That makes the setup simpler than a dual-hose arrangement, but the unit still needs a properly sealed window opening and an unobstructed exhaust route. The manual cautions against extending the hose beyond nine feet because added length can reduce cooling efficiency.

Whynter lists a 20–46-inch window-kit span and cabinet dimensions of 17 inches wide, 15.5 deep and 31 high. The exact page lists 63 pounds while the manual says 62, so weight is left unresolved for a strict handling limit. Measure the opening at the slider track, the spot where the cabinet will sit, clearance for the rear hose and the route from delivery to that spot. Its casters are useful on a smooth, level floor, not a substitute for a stair-moving plan.

Three modes, but no heat or pump-assisted drainage

The listed modes are air conditioning, fan and dehumidification, with three fan speeds and a remote. Heat Mode is explicitly No. The unit has a washable pre-filter and an activated-carbon filter; the manual recommends cleaning the pre-filter at least every two weeks and replacing the carbon layer every two to three months or when needed. A timer and automatic restart are also listed, but neither changes the required physical window installation.

Whynter describes self-evaporation as managing condensate in most conditions, not every condition. The manual provides a lower drain for manual emptying and an upper port for continuous gravity drainage; the separate drain hose is sold separately. The product page says Pump Feature: No. If you require a lift pump or want to avoid checking a drain warning, this configuration does not document that capability. For gravity drainage, the destination needs to sit below the outlet and the route should be secured against spills.

Energy and sound figures have important caveats

The exact ARC-12S EnergyGuide names the model and prints 5,000 BTU/h, CEER 4.9 and an estimated annual cost of $115 under the label’s stated seasonal assumptions and energy rate. The manual gives a different CEER figure of 6.1. Because the label is the basis used for a comparable efficiency figure and it conflicts with the manual, this review leaves the exact-label CEER unknown rather than choosing the more favorable number. Neither annual estimate predicts a household bill; actual use depends on climate, hours, set temperature, building heat gain and local electricity cost.

Whynter claims sound below 51 dBA at low fan and below 52.5 dBA at high fan; those are manufacturer figures, not measurements in a bedroom. The manufacturer lists one-year limited coverage and an additional two years for the compressor. Verify the current warranty terms and the exact ARC-12S suffix on any offer.

Who it suits—and when to move up

Choose this model only when 5,000 BTU/h SACC is sufficient for the real space, a single hose is acceptable, heat is unnecessary, and the window kit fits. If a dual-hose system matters, or if the room needs more documented DOE capacity, look at the ARC-12SD instead; its cabinet is taller and heavier by some listed figures, but it has a separate intake hose and a page-listed 6,936 SACC. If you need heat as well as cooling, the ARC-12SDH adds a heat-pump mode but has conflicting heating-capacity and weight documentation, while Whynter’s ARC-122DHP has a documented heat-pump/drain-pump arrangement at a lower 7,000-BTU SACC.

Read the exact ARC-12S page, its manual and its model-named EnergyGuide together. This review is based on manufacturer documentation, not hands-on testing or owner feedback; it does not claim actual noise, cooling, reliability, current price or availability.
