Whynter ARC-122DHP 7,000-SACC AC with Heat review

The DHP is the heat-and-pump version, not just a silver ARC-122DS

Whynter's ARC-122DHP shares the Elite dual-hose cabinet and 7,000-BTU SACC cooling rating with ARC-122DS, but it adds a heat-pump mode and a built-in condensate pump. Those are meaningful changes. A summer-only buyer may prefer the simpler ARC-122DS; a shoulder-season buyer with a drain route can use the DHP's extra hardware. Both share a 12,000-BTU ASHRAE headline, but SACC is the better comparison rating.

Whynter describes the unit as suitable for spaces up to 400 square feet. Treat that as a starting estimate rather than a promise. Room shape, sun, ceiling height, insulation, adjoining rooms and heat from people or equipment all affect the load. The DHP does not become a substitute for a building heating system merely because it can reverse its refrigeration cycle.

Heat adds a drain task and a temperature boundary

The manual lists a 10,000-BTU ASHRAE heating capacity and a 9,500-BTU DOE heating value. It says the heat-pump function is intended for ambient conditions above 45°F, with the heat setting limited to 61–77°F in that mode. That makes this useful as supplemental or shoulder-season heat when the outdoor temperature stays in range, not as a dependable cold-weather heater. If your room needs heat below that boundary, choose another heating plan rather than assuming the same BTU number applies at all temperatures.

Heating also changes how water leaves the appliance. Whynter's manual says to route the drain tube during heat operation; the DHP's integrated pump can move condensate through the included 7.5-foot hose with up to 16 feet of vertical lift. Measure the route to a suitable drain before placing the machine. The pump is convenient only if the receiving location and hose path work. Keep the tube from kinking, secure it against movement and follow the manual's placement instructions. Cooling is usually self-evaporative, but heating should not be planned as a no-drain mode.

For a question that matters at installation, compare the DHP with the ARC-122DS. The DS has no heat and no built-in pump; its manual describes an optional gravity drain hose. The DHP adds both heat and pump-assisted condensate removal, but this does not mean it can heat without a drain route.

Dual-hose cooling and a fairly compact cabinet

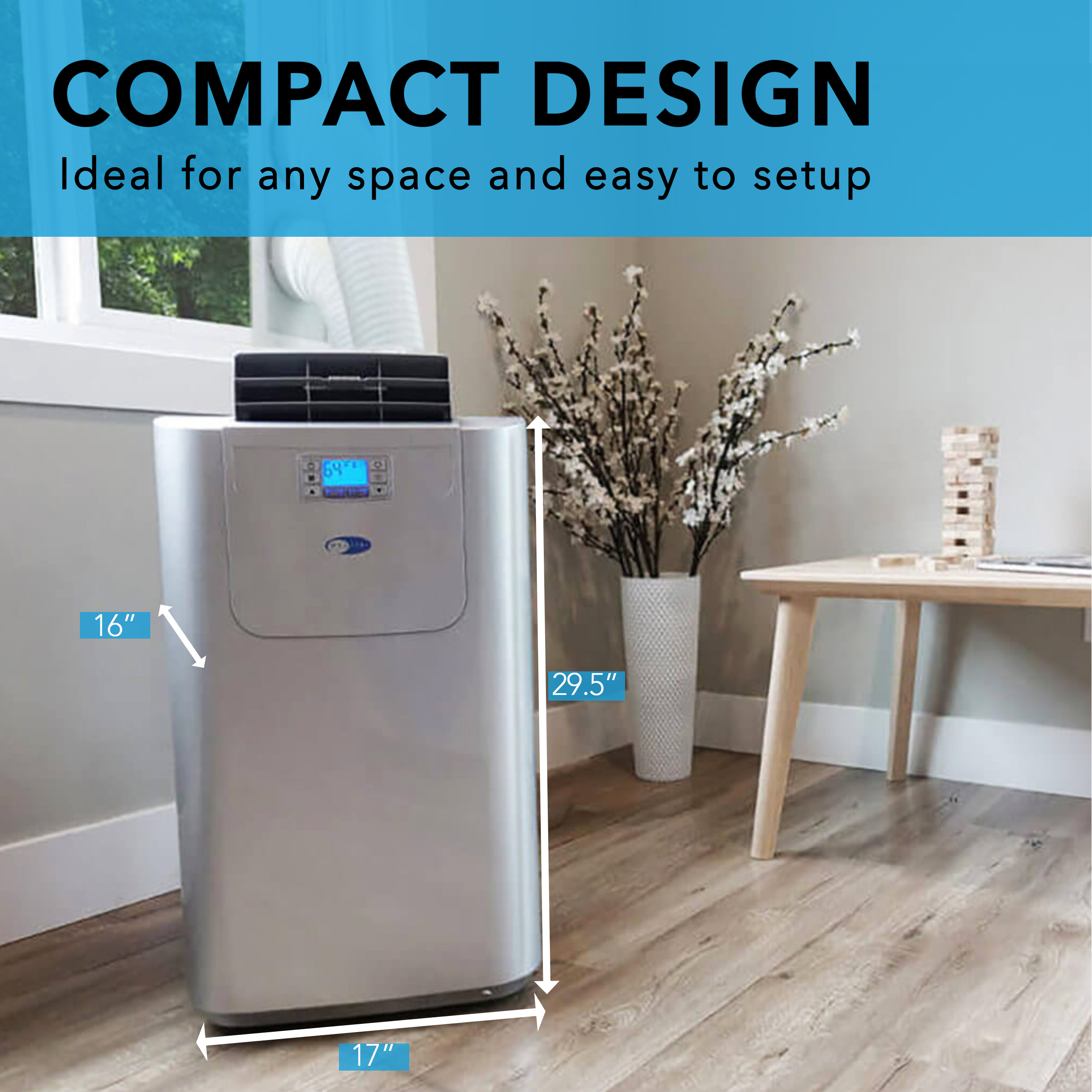

The two-hose setup draws outside intake air separately from the hot exhaust. That can avoid the same room-air replacement path that a single-hose unit creates, though it still needs a well-sealed panel and a short, uncrushed hose route. Whynter says the intake can be removed in conditions where the outside air is much hotter or more humid; use that option only in line with the manual. The cabinet is 17 inches wide, 16 inches deep and 29.5 inches high. It also needs clearance around its vents, space for both ducts and a suitable window opening. Two hoses can make the installation more demanding than the cabinet dimensions suggest.

The exact page and manual disagree on two fit details. The linked manual gives a window-kit range of 20–46 inches, but the current product page says 20–56 inches. The actual slider in a retailer's carton is not established by those conflicting documents, so the model is excluded from the hard window-span test. The product page lists net weight at 70 pounds; the manual lists 63. Neither value is used as an exact weight filter. Verify the supplied kit and the unit label with the seller, especially if the window is wide or the appliance must be carried upstairs.

Do not overread the energy, sound or moisture claims

The exact current page lists a 47-dBA low-speed claim and a 52-dBA high-speed claim. The linked manual says less than 52 dBA. Those are manufacturer figures, not an independent noise reading. The manual also publishes CEER/EER values of 6.88/9.55. The product's EnergyGuide instead provides an estimated annual-use figure of 3,030 kWh and a printed annual-cost estimate of $364 at its assumed electricity rate; that is not a personal bill forecast. I leave the finder’s exact-label CEER field unknown rather than treating a manual table as an EnergyGuide label.

Moisture capacity is another source conflict: the current product page says 82 pints per day, while the linked manual lists 76. Since neither figure is a need that the current finder asks you to filter on, compare the operating features rather than choosing from the advertised pint total. The washable pre-filter should be cleaned at least every two weeks; let it dry before reinstalling. The unit also has an activated-carbon filter. Whynter lists a one-year warranty and a three-year compressor warranty, not three years of full-unit coverage.

Who should choose this configuration?

Consider ARC-122DHP if you need cooling plus limited-temperature heat, want dual-hose exhaust and can route the included pump hose during heating. Its additional pump is a real convenience for a raised drain route, but it does not make drainage irrelevant. Skip it if you need below-45°F outdoor heating, cannot manage a heat-mode drain tube, or have a strict window-span or carrying-weight ceiling that depends on the disputed documentation.

For cooling alone, the ARC-122DS has the same published SACC rating and body dimensions without the heat-pump/pump arrangement. For a different approach, compare window-mounted equipment if a portable hose installation is not essential and your window can accommodate it. Use the full ARC-122DHP suffix when checking a retailer listing; the adjacent ARC-122DS product page uses a similar hero image, so do not identify the model from cabinet appearance alone. Read Whynter's ARC-122DHP product page, linked manual and exact EnergyGuide before purchase.

This is a documentation-based assessment, not an ownership report or hands-on test. It does not promise cooling speed, sound level, annual savings or performance in a particular room. Confirm the carton contents, exact drain route and window panel for the version being sold.
