Whynter ARC-12SDH 6,884-BTU SACC Heat-Pump AC review

A dual-hose heater whose capacity labels need careful reading

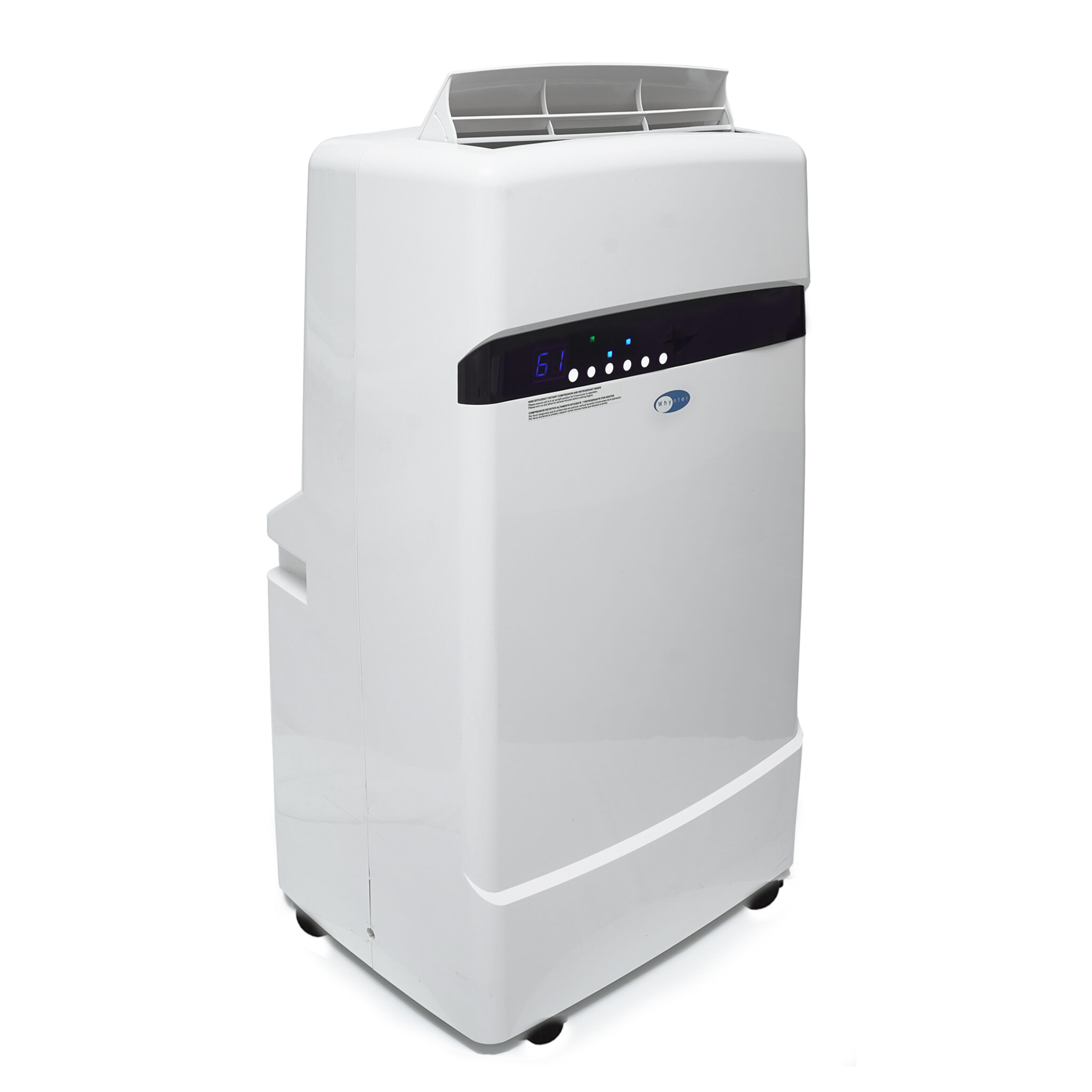

The Whynter ARC-12SDH is a white portable air conditioner with a documented dual-hose layout, cooling, heat-pump operation, dehumidify and fan modes. Its exact product page gives 12,000 BTU/h ASHRAE cooling and 6,884 BTU/h SACC, plus a manufacturer room estimate of up to 400 square feet. SACC is the more useful portable-AC comparison figure; the 12,000 figure should not be read as the DOE rating. A room’s sun exposure, insulation, ceiling height, open doorways and internal heat can make the real load quite different from a square-foot estimate.

Heating is a real distinguishing feature, but the listed capacity is unsettled. Whynter’s product page says 9,500 BTU/h heating, while the ARC-12SDH manual’s technical table says 11,000 BTU/h. The manual does confirm heat-pump operation and says it will not work below 45°F ambient; its heat setpoint is 61–77°F. I would treat it as supplemental heat in suitable conditions, not a replacement for a primary heater or a guarantee of cold-weather performance. The competing figures are not combined into one rating.

Confirm the two-hose installation and window opening

This model has separate intake and exhaust hoses, which is different from the single-exhaust ARC-12S. The included slider is listed for a 20–46-inch span. Whynter’s manual allows trimming the slider below its minimum only if the hose cutouts are not damaged; a wider opening needs additional material or a separately purchased slider. The manual recommends keeping the exhaust run short and straight, with a maximum total extension of nine feet, and leaving at least 20 inches around the unit for airflow. A window kit that fits does not guarantee the cabinet and both hoses fit beside furniture, a curtain or a narrow sill.

The listed cabinet dimensions are 20 by 16.5 by 34 inches. Weight is inconsistent: the page lists 80 pounds net and the manual lists 71 pounds. Casters help on a level floor but do not remove the difficulty of moving a tall appliance across thresholds or stairs. Plan delivery and placement as if it will remain on one floor.

Moisture handling is not the same as a pump

Whynter promotes automatic evaporation in most cooling and dehumidifying conditions, and the page rates moisture removal at 96 pints per day. That rating does not mean water can never collect. The manual describes a lower port for manual emptying and an upper port for continuous gravity drainage in cooling and dehumidifying modes. The product specification says Pump Feature: No. Keep a shallow drain vessel available for setup and high-humidity periods, and use the gravity route only where a hose can descend safely to a suitable drain. A lift pump is not documented for this model.

The page-linked EnergyGuide is not a usable ARC-12SDH label: the archived sheet itself names ARC-14SH. I therefore do not report its CEER or annual cost as an ARC-12SDH result. The manual also conflicts with the page on heating capacity and cabinet weight; those details should be checked against the exact unit’s documentation before a purchase depends on them.

Filters, controls and ordinary upkeep

The appliance has three fan speeds, a timer, remote and onboard controls. Its washable pre-filter catches larger particles; the activated-carbon element is intended for smoke and odors and is not washable. The manual recommends cleaning the pre-filter about every two weeks and replacing the carbon filter every two to three months or as needed. It also advises upright transport, a grounded outlet without an extension cord and seasonal draining and filter cleaning. These are recurring ownership tasks, not optional cosmetic details.

Whynter lists cooling from 61–89°F and heating setpoints from 61–77°F. The manual says heat-pump operation requires ambient conditions above 45°F, and the page’s noise figures are manufacturer claims rather than independent measurements. Do not interpret the model’s four modes as four kinds of heat: it is a heat-pump unit, not a dedicated resistive heater.

Who should compare it with the ARC-12SD?

The ARC-12SDH suits someone who specifically needs dual-hose cooling and wants a heat-pump option for mild conditions, has a 20–46-inch opening, and can manage occasional manual or gravity drainage. If heating is not essential, the ARC-12SD has a slightly higher page-listed SACC of 6,936 BTU/h but no heat; its exact EnergyGuide is also mislabeled as ARC-14SH, so its label efficiency is not established here. The smaller ARC-12S uses a single hose and is rated only 5,000 BTU/h SACC. For a heat-capable model where a documented pump route is essential, compare the separate Whynter ARC-122DHP review rather than assuming the ARC-12SDH has a pump.

The exact ARC-12SDH page, model manual and page-linked EnergyGuide were checked. This is a documentation-based assessment, not a hands-on trial: it does not claim measured cooling, sound, power use, durability, owner experience, price or stock.
